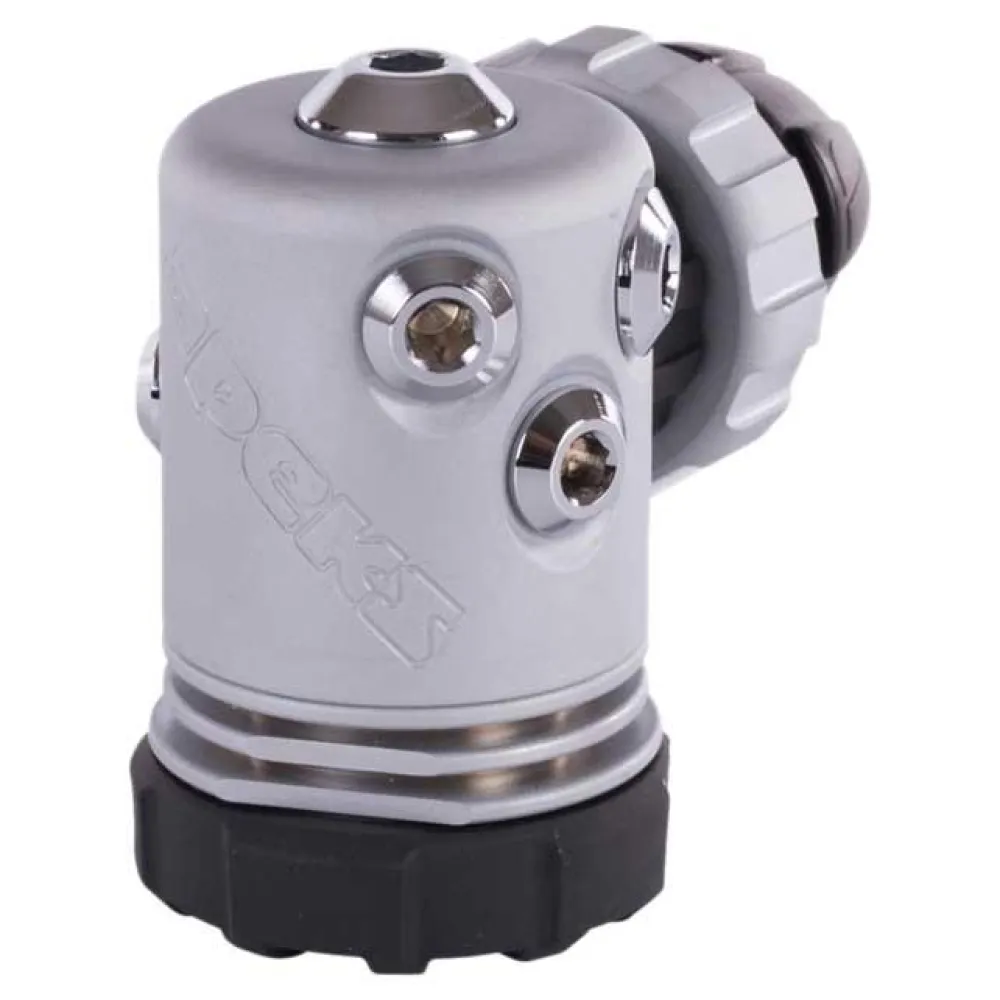

XL4 DIN 1st Stage Regulator

The Apeks XL4 is especially well-suited for the technical exploration diver who prefers cold water climates. Compact and lightweight, it helps reduce jaw fatigue during long, cold dives. Designed with an innovative, over-moulded endcap in conjunction with the environmental diaphragm that helps prevent ice build-up. The XL4 makes an ideal stage regulator and is also an excellent high-performance option for the technical exploration diver who is serious about maximizing functionality and minimizing weight.

Features:

– Breakthrough, innovative over-moulded first-stage endcap and environmental diaphragm help prevent ice build-up that can cause first stage free flow in extreme circumstances. Also = – protects the first stage from impact damage
– Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the 1st stage, resulting in improved cold water performance
– Unique over-balanced diaphragm design?as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This – results in superior performance at depth
– Compact machined 1st stage based on the expedition tested Apeks DS4 platform.

second Stage:
– Compact and lightweight second stage improves comfort and helps reduce jaw fatigue on long duration dives
– High-performance, pneumatically-balanced, lever-operated poppet valve
– Large, over-moulded, self-flushing and controllable purge button
– Ergonomic Venturi lever is easy to use and locate
– Flexible nylon braided hose has better cold water performance than traditional rubber hose
– Standard metallic hose connection for interchangeability
– Comfo-biteTM mouthpiece has a unique bridge that fits across the upper palate and does not require bite pressure to stay in place
– Re-useable mouthpiece clip makes it simple to change mouthpieces in the field
– Durable and flexible rubber exhaust tee provides excellent bubble diversion.

Specifications:

– Connections: DIN available
– Type of first stage Over-balanced diaphragm design, environmentally sealed
– Body Type One piece forged body
– Number of HP ports 1 (7/16 UNF)
– Number of MP ports 4 (3/8 UNF)
– Environmental Dry Kit Standard
– First stage exterior Satin
– Orientation: Convertible LH or RH
– Coldwater Use Yes
– Type of second stage: Pneumatically balanced
– Opening Effort Control Knob: Yes
– Integrated Venturi Lever: Yes
– Mouthpiece: Comfo-bite?
– Exhaust tee: Standard, one set
– Heat Exchanger for freezing resistance: Yes
– Hose type : Braided Flexi-hose
– Overall work of breathing (WOB) scores: Avg. 0.90 joules/liter
– Nitrox compatible: Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
