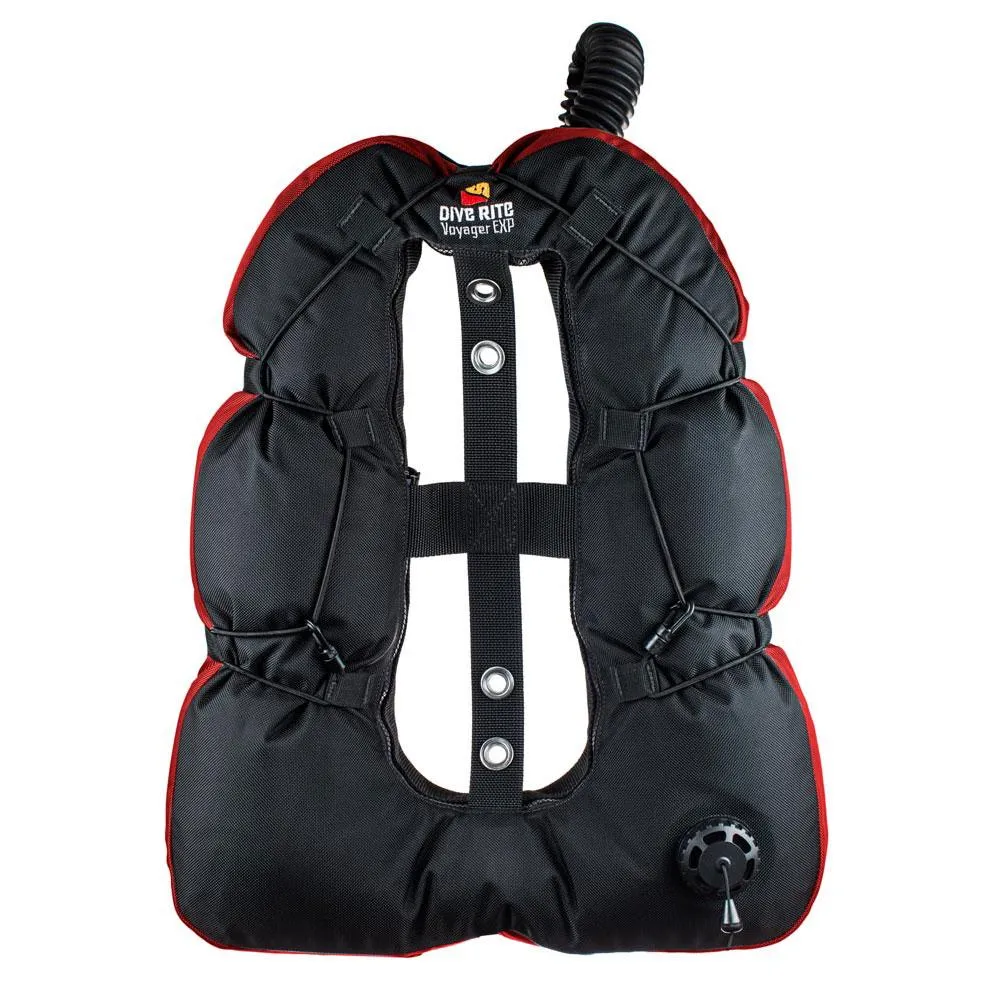

Voyager EXP

The Voyager Series wings, donut-shaped air cells for single-tank diving, provide divers essential buoyancy control. With 35 lbs. (15.8 kg) of lift, streamlined side panels, and their minimalist, oval shape, the wings’ design provides maximum comfort throughout the dive with no squeezing or restrictions. The donut-shape design provides greater stability and control while diving by keeping an even volume of inflation on the top, sides, and bottom. This, along with an integrated Gusset Control System (GCS) that reduces ´taco´ effect and promotes effective streamlining, puts buoyancy where it is most needed (throughout the torso supporting the weight of the tank) for superior horizontal trim. The GCS is not like a bungee wing because it does not restrict airflow; instead, the GCS promotes added streamlining and buoyancy control, yet allows the wing to inflate to its full capacity. Even floating on the surface, the Voyager Series wings excel by keeping the diver in a vertical position when used in conjunction with a harness and crotch strap; it won’t tip you over.

Divers may choose from our durable 1680 ballistic nylon EXP material or our even more rugged SuperFabric® brand technology XT material that creates an armor-clad outer shell that is impervious to damaging pinches and cuts, with a 1680 ballistic nylon diver´s side panel. Both the Voyager EXP (Model BC4700) and Voyager XT (Model5200) are further enhanced with a heavy-duty, 210 denier nylon laminated bladder.

Equipped with a choice of a 12- or 16-inch elbow or a 16-inch rapid exhaust (pull dump), appropriate low-pressure inflation hose, and two sets of marine-grade 316 stainless steel grommet mounting holes for attaching the wing to a harness, the Voyager Series can accommodate any diver’s needs.

As a part of our modular BCD system, the Voyager Series wings can be matched with either a TransPac® XT, Transplate, or any metal back plate and webbing harness.

Made in the USA.

TECHNICAL DETAILS

Outer bag

Model BC4700 Voyager EXP: Durable 1680 denier ballistic nylon (highly resistant to pinches and punctures)

Model BC5200 Voyager XT: SuperFabric brand technology outer shell and 1680 ballistic nylon diver’s side panel (extremely resistant to pinches and punctures)

Inner bladder: 210-denier nylon laminated (highly resistant to pinches and punctures)

Wing Gusset Control system for streamlining

Lift: 35 lbs. (15.8 kg)

LP inflator hose

16-inch rapid exhaust (pull-dump) or 12- or 16-inch elbow

Mounting: Two sets of marine-grade 316 stainless steel grommet holes are used to attach wing to harness and set diver trim

Urethane flanges: Welded in place, which make it easy to switch out corrugated hoses and over pressurization valves without tools

Weight: 2.8 lbs. (1.27 kg)

Size: 22-in. H x 19-in. W (55.8cm x 48.3cm)

Made in the USA

COLOR: BK/Pink
