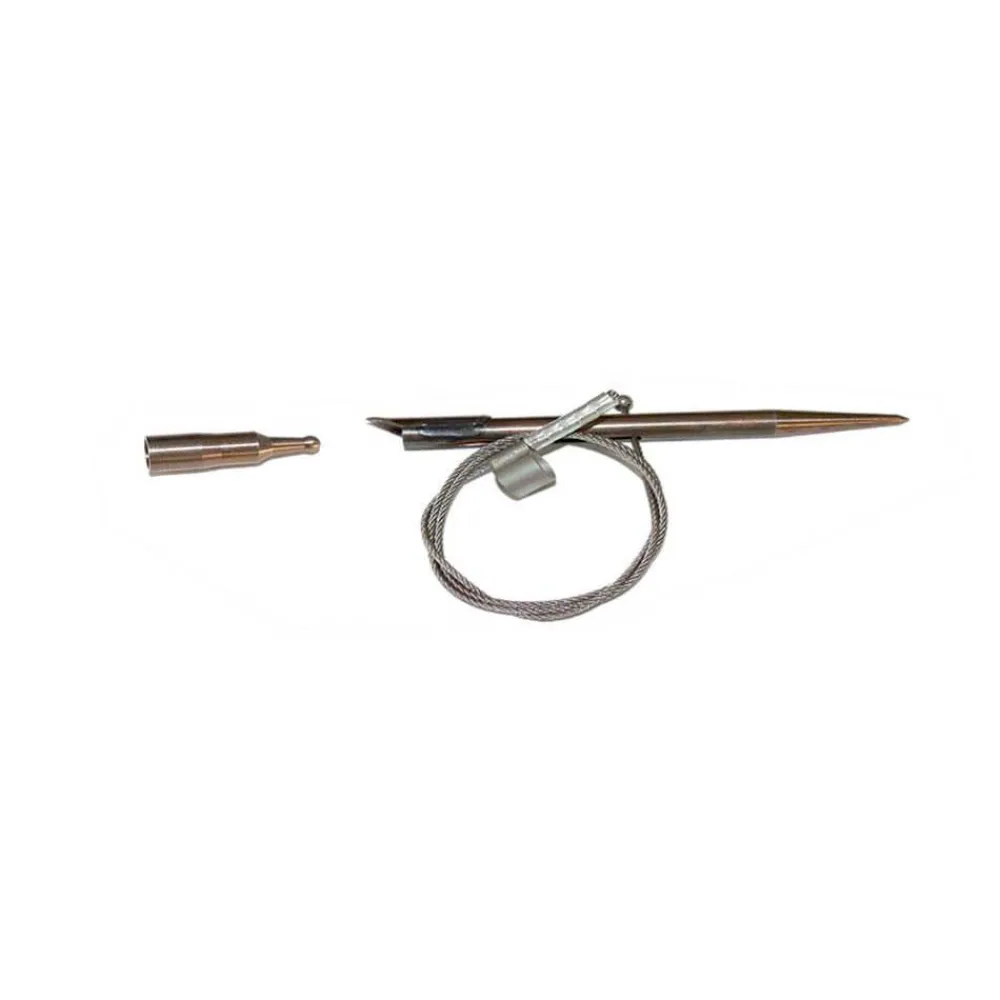

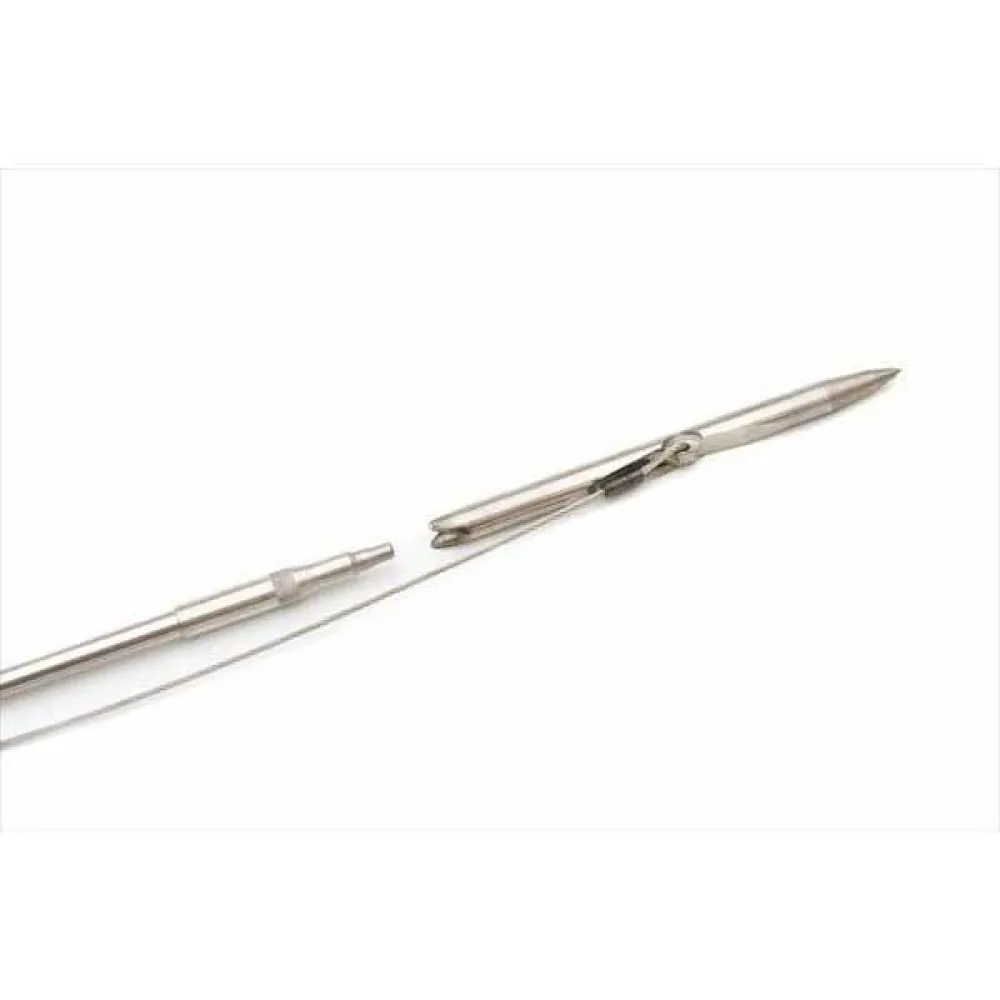

Slip Tip 8 Mm

After years of relying on suppliers that did not make the slip-tips to TechnoSports standards where quality and consistency was a constant source of frustration, and at the same time appreciating some of the nicer touches of a few small custom manufacturers, our new ´Toggler´ Slip Tip combines the best features of the highest quality custom and production tips on the market. It also adds some very strait forward technical innovations that any discerning diver with years of experience using break away tips will appreciate.

This tip is aimed at hunters who are looking for a low profile tip (4.5´) for thinner 9/32´ 7mm or 5/16´ shafts that guarantees correct deployment in the fish. We offer it with a lifetime guarantee and its available at the finest dealers Nationwide that carry our products.

THREADS – 6mm only w/shoulder
MATERIALS: MADE IN USA to Precision standards
Tip Length 4.5´; 17-4 PH hardened to 44 Rockwell 5/16´ thickness (7.9mm)
Male adapter; 7-4PH hardened to 44 Rockwell 11/32´ (8.7mm)
Slide Ring: ´figure 8´ double barrel, hand welded 3/16´ round w 3/32´ hole welded to 3/8´ slide ring. 3/8´ (9.5mm)
Cable: 20´ x 1/16´ 316 Stainless cable w/pressed stainless ball 3/16´ (4.7mm)

TECHNICAL FEATURES:
Starting from the most important realizations studied from the best custom break away tips on the market the Toggler offers: Hardened Tip & adapter to 44 Rockwell to prevent bending of tip & adapter from accidental impact into rocks & other unforeseen hazards.
Accuracy; the tip and parts are machined to exacting tight tolerances to ensure no wobble ´turbulence´ during flight and perfect ´play free´ mating between tip and adapter and the cable. There is not a more low profile break away tip on the market today.
Deployment: The tip cannot get ´jammed´ on the adapter upon impact and will always deploy ´toggling´ sideways inside the fish. This prevents accidental side pressure and possible bending strain on tip parts & shaft as well as ensuring proper deployment in the fish. No O-rings required, just tuck the cable under the bands or the shooting line.
Reduced dimension: this tip compared to larger custom tips on the market is the first that is proportionally smaller; it has a 5/16´ tip body, 11/32´ adapter, and this makes it linear and accurate not only on 5/16´ shafts but also 9/32´ 7mm shafts where most tips are too large and cause excess drag. For this reason the threads are 6mm with a shoulder. A larger thread pattern of 5/16´ or so could not be accommodated without risking a delicate thin wall. The adapter has a shoulder that accommodates 6mm threaded shaft w/shoulders to protect the threads and reinforce connection between tip & shaft. The deployment ´finger nail´ on the back topside of the tip is hand welded and sharpened and is extremely resistant to bending. The sharp edge ensures it will always catch the inside of the fishs flesh and turn sideways as the cable is pulled back ensuring the tip toggles under the skin or on the other side of the fish.

LIFE TIME GUARANTEE Life Time Guarantee covers everything except obvious negligent high impact damage, therefore it covers any failure due to material parts stress, cracks, bending or breakage, or improper alignment. Cable excluded from guarantee.

RECOMMENDATION Loctite Thread Locker Blue 242 REMOVABLE applied to shaft threads to avoid that the adapter unscrews accidentally.
