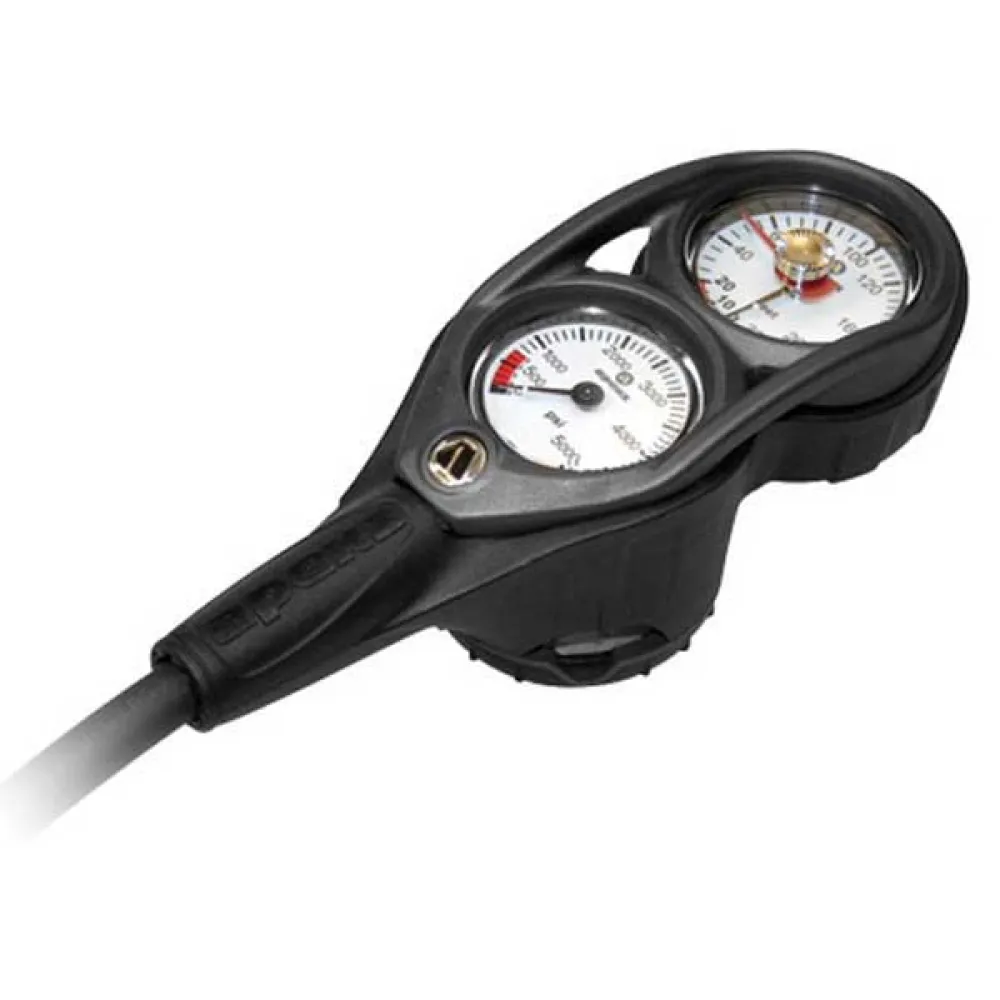

Press Gauge+Depth Gauge Console+Compass

All instruments give accurate, clear readings and are made from the best quality materials. As such they offer perfect functionality and excellent robustness. In essence, the 2+1 instrument combo is an Apeks 2-gauge console with our unique compass on the reverse. A compact system that we believe is the best combo set available anywhere in the world.

Features:

– The gauge case is made from nickel plated brass
– The dial window is made of highly shock resistant material (anti-splinter polycarbonate)
– A specially designed housing protects the gauge and HP hose fitting from accidental damage
– A large loop area designed into the housing allows for easy attachment.
– There is an over-pressure capsule fitted in the back of the module to prevent the screen from exploding in the unlikely event of the internal mechanism failing.
– Dials have a long phosphorescent effect for better reading in poor visibility conditions
– There are 2 attachment areas integrated into the design for position flexibility
– This may be a compact design but the displays are vivid and clear – perfect for diving. For example, the depth gauge spreads the first half of the scale and in total shows a range down to 70 m
– Depth gauge has resettable max depth indicator
– The compass ratchet bezel is robust and can be rotated with ease even with thick neoprene gloves
– The numbers and directions on the compass bezel are large and very easy to read
– The luminous compass dial with a vivid and clear display makes quick work of compass direction even in poor visibility

Specifications:

– SPG case material: Nickel plated brass
– SPG dial face: Anti-splinter polycarbonate
– SPG dial range: 0 – 360 Bar / 0 – 5000 Psi
– Luminous background: Yes for both gauges
– Over-pressure relief: Yes
– Attachment loop: Yes – Two
– O2 compatible materials: Yes
– O2 clean: No
– Resettable max depth indicator: Yes
– Compass side view windows: 2
– Ratcheting bezel: Yes
