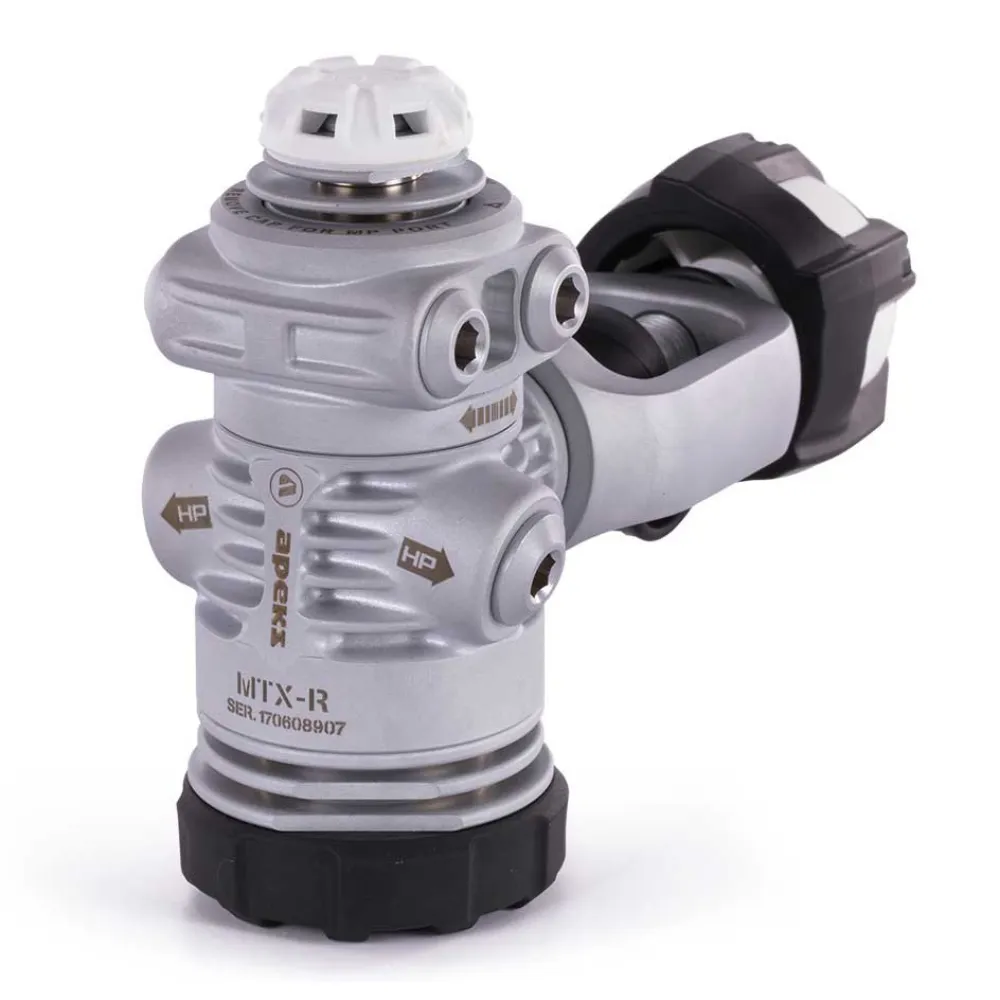

MTX-R INT 1st Stage Regulator

The MTX-R has excellent cold water performance and has a greatly reduced risk of free flow. This has been achieved by improving several areas, including an innovative endcap and environmental diaphragm, a forged 1st stage body offering maximum thermal preference, a ribbed diaphragm clamp and a redesigned & enlarged heat exchanger on the 2nd stage with metal incorporated into the front cover design.

Features:

First Stage:
– Available in yoke or DIN configuration.
– Suitable for cold water use (below 10°C / 50°F)
– Unique over-balanced diaphragm design – as the diver descends, the overbalancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
– Over-moulded innovative endcap and environmental diaphragm, a forged 1ststage body offering maximum thermal performance,
– The 5th 3/8” UNF medium pressure port includes a protective bumper whennot in use.
– Forged first stage body with heat exchanging ribs for maximum thermalperformance.
– Angled HP ports for optimal hose routing and fitting of transmitters.
– Forged rotating turret with medium pressure ports in a parallel direction forimproved hose orientation.
– Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
– Double swivel hose for greater freedom of movement and comfort.
– Tested for Octopus use – EN250A cold water.
– Nitrox/Oxygen compatible – Up to 40% O² outside the EU (European Union),within the EU anything above 21% O² must use an M26 Connection.

Second Stage:
– High performance, pneumatically balanced, lever operated poppet valve.
– Large, diver friendly self-flushing controllable purge button.
– Front cover with over-moulded elastomer incorporates a formed chrome plated brass plate improving durability of the second stage.
– Large protective elastomer bumpers on the side and on the top to protect thesecond stage from impacts and scratches in the most vulnerable places.
– Reversible second stage for either a left or right hand gas supply configuration.
– A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
– Comfo-bite mouthpiece
– Double swivel hose
– Flexible nylon braided hose has better cold water performance than traditional rubber hose.
– Simple service kits.
